vec2wav 2.0: Advancing Voice Conversion via Discrete Token Vocoders

Yiwei Guo1,2, Zhihan Li1,2, Junjie Li1,2, Chenpeng Du1,2, Hankun Wang1,2 Shuai Wang3, , Xie Chen1,2, Kai Yu1,2

1X-LANCE Lab, MoE Key Lab of Artificial Intelligence,
School of Computer Science, Shanghai Jiao Tong University, China
2Jiangsu Key Lab of Language Computing, China
3Shenzhen Research Institute of Big Data, Shenzhen, China

📧 Email: yiwei.guo@sjtu.edu.cn

[Paper] [Code]

We propose a new speech discrete token vocoder, vec2wav 2.0, which advances voice conversion (VC). We use discrete tokens from speech self-supervised models as the content features of source speech, and treat VC as a prompted vocoding task. To amend the loss of speaker timbre in the content tokens, vec2wav 2.0 utilizes the WavLM features to provide strong timbre-dependent information. A novel adaptive Snake activation function is proposed to better incorporate timbre into the waveform reconstruction process. In this way, vec2wav 2.0 learns to alter the speaker timbre appropriately given different reference prompts. Also, no supervised data is required for vec2wav 2.0 to be effectively trained. Experimental results demonstrate that vec2wav 2.0 outperforms all other baselines to a considerable margin in terms of audio quality and speaker similarity in English and cross-lingual any-to-any VC. Ablation studies verify the effects made by the proposed techniques.

English Any-to-Any VC

We conduct English any-to-any VC comparisons using the unseen speakers in the LibriTTS test-clean split. We randomly select 10 speakers, from each of whom 2 utterances are chosen to be the source utterances. Another 10 speakers are selected as target speakers with one 3-second reference utterance for each. This yields a test set of 200 any-to-any VC cases.

To enable a fair comparison between models, we downsample all the audio to 16kHz (although vec2wav 2.0 generates 24kHz audio).
Note that CosyVoice is an industry-level baseline, trained on massive amount of data (300 times larger than us).

Source Utterance Target Speaker vec2wav 2.0 YourTTS DiffVC Diff-HierVC UUVC FACodec CosyVoice
[Show transcript]If a layman in giving baptism pour the water before saying the words is the child baptized?
[Show transcript]All this I could hardly explain to him, as I should thus be giving to him the strongest evidence against my own philosophy.
[Show transcript]No class of society, not even the most abjectly poor, forgoes all customary conspicuous consumption.
[Show transcript]Every scheme known to politicians must be worked, and none knew the intricate game better than Hopkins.
[Show transcript]The music, hautboys, flutes, and viols, was delightfully descriptive of rural delights.
Source Utterance Target Speaker vec2wav 2.0 YourTTS DiffVC Diff-HierVC UUVC FACodec CosyVoice
[Show transcript]When one kidney ceases to act from disease, the other increases in size, and does double work.
[Show transcript]The music, hautboys, flutes, and viols, was delightfully descriptive of rural delights.
[Show transcript]"But it is not with a view to distinction that you should cultivate this talent, if you consult your own happiness.
[Show transcript]Every minister should make much of his calling and impress upon others the fact that he has been delegated by God to preach the Gospel.
[Show transcript]Every scheme known to politicians must be worked, and none knew the intricate game better than Hopkins.

Cross-Lingual Any-to-Any VC

We use the same set of English source utterances as in English VC tests, but convert to target speakers in other languages. We collect reference utterances from five languages (Spanish, German, Dutch, Italian, French.) in MLS. The test set is the full combination of source and target utterances, which has also 200 pairs.
The test set metadata can be found here. Every line of this file means "english_{source}_to_{language}_{target} {language}_{target}", and "source" and "target" refers to LibriTTS and MLS utterance IDs respectively.

Source Utterance Target Speaker Target Language vec2wav 2.0 YourTTS Diff-HierVC
[Show transcript]Emerald and black and russet and olive, it moved beneath the current, swaying and turning.
Dutch
[Show transcript]My father is a clergyman of limited, though competent income, and I am the eldest of his children.
Italian
[Show transcript]But Algiers, like all the other coast towns, had apparently been absorbed into the bowels of the earth.
Spanish
[Show transcript]When one kidney ceases to act from disease, the other increases in size, and does double work.
German
[Show transcript]This was a pretty little speech enough, and received the eager compliments of the officers of the john Bright.
French
Source Utterance Target Speaker Target Language vec2wav 2.0 YourTTS Diff-HierVC
[Show transcript]If a layman in giving baptism pour the water before saying the words is the child baptized?
French
[Show transcript]As for the rest of mankind, stagnating night rests upon them.
German
[Show transcript]All this I could hardly explain to him, as I should thus be giving to him the strongest evidence against my own philosophy.
Dutch
[Show transcript]"He was soft hearted and impetuous," said Beth; "and, being in love, he didn't stop to count the cost."
Spanish
[Show transcript]He was dressed in a tunic of flowers, which set off his graceful and well formed figure to advantage.
Italian

Ablation Study

Apart from vq-wav2vec, we train CTX-vec2wav and vec2wav 2.0 on HuBERT tokens and wav2vec 2.0 tokens.
We additionally train two variants of vec2wav 2.0 on vq-wav2vec inputs: vec2wav 2.0-ab1 that removes the adaptive Snake activations in BigVGAN generator; and vec2wav 2.0-ab2 that removes the adaptive Snakes and replaces BigVGAN with HifiGAN. Thus the comparison between vec2wav2.0 and "ab1" indicates the effect of adaptive Snake activation, while that between CTX-vec2wav and "ab2" shows the difference made by prompt feature and modules.

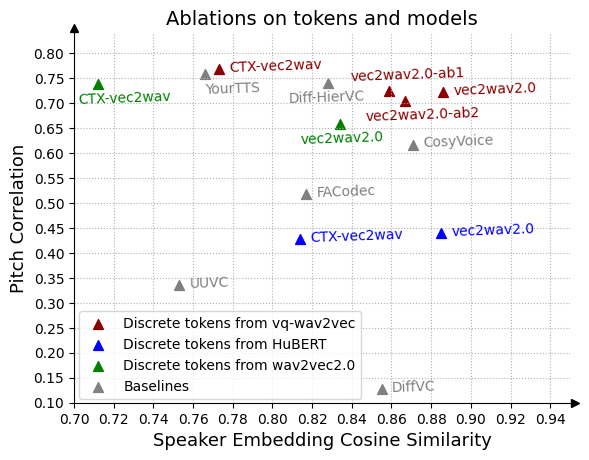

Perfect VC systems should lie on the top right of the following chart.
Source Utterance Target Speaker
[Show transcript]Emerald and black and russet and olive, it moved beneath the current, swaying and turning.
HuBERT-Large
(Layer 24 kmeans 2048)
wav2vec 2.0 Large
(quantizer output)
vq-wav2vec
(quantizer output)
CTX-vec2wav
vec2wav 2.0

Pitch Contour: Case Study

We present the pitch contours of a conversion sample (LibriTTS 2830_3980_000021_000000 as source, 237_134493_000015_000004 as target).
Source Utterance Target Speaker Converted Sample
[Show transcript]Every minister should make much of his calling and impress upon others the fact that he has been delegated by God to preach the Gospel.

Citing our Work

@misc{guo2024vec2wav20advancingvoice,
	title={vec2wav 2.0: Advancing Voice Conversion via Discrete Token Vocoders},
	author={Yiwei Guo and Zhihan Li and Junjie Li and Chenpeng Du and Hankun Wang and Shuai Wang and Xie Chen and Kai Yu},
	year={2024},
	eprint={2409.01995},
	archivePrefix={arXiv},
	primaryClass={eess.AS},
	url={https://arxiv.org/abs/2409.01995},
}
